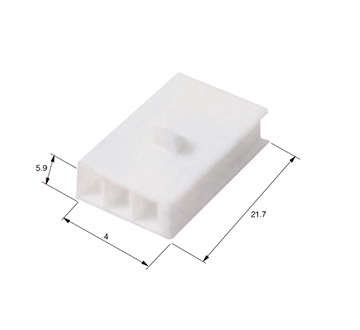

2.8 Series 2.8mm Connector Housing

Model: 2.8 Series | Category: 2.8mm Connectors

2.8 Series 2.8mm Connector Housing — PA66 V0 (UL94 V-0) housing, 2.8mm pitch, rated Up to 5A. For Refrigerator, Washing Machine, Automotive applications.

RoHSREACH

Request Quote / Free Sample

Technical Specifications

Pitch

2.8mm

Poles / Positions

2-15 positions

Housing Material

PA66 V0 (UL94 V-0)

Contact Material

Copper alloy, tin-plated

Wire Range

AWG 22-18

Rated Voltage

250V AC/DC

Rated Current

Up to 5A

Operating Temperature

-25°C to +105°C

Certifications

RoHS, REACH

Packaging

Bulk

MOQ

500 pcs

Competitor Cross Reference

The 2.8 Series is form-fit-function compatible with the following models. Save 30-50% with Haiyongchang equivalent.

TE Connectivity Part Number	Haiyongchang Equivalent	Description
MCP 2.8	2.8 Series	2.8mm Connector Housing

Frequently Asked Questions

What are the key specifications of the 2.8 Series?

Pitch: 2.8mm. Positions: 2-15 positions. Wire range: AWG 22-18. Rated voltage: 250V AC/DC. Rated current: Up to 5A. Operating temperature: -25°C to +105°C.

Is the 2.8 Series a drop-in replacement for TE Connectivity MCP 2.8?

Yes. The 2.8 Series is form-fit-function compatible with TE Connectivity MCP 2.8, typically saving 30–50% versus the original part.

What material and certifications does the 2.8 Series have?

Housing: PA66 V0 (UL94 V-0). Contacts: Copper alloy, tin-plated. Certified RoHS and REACH.

What is the MOQ and packaging for the 2.8 Series?

MOQ: 500 pcs. Packaging: Bulk. Free samples available for qualified B2B inquiries.
